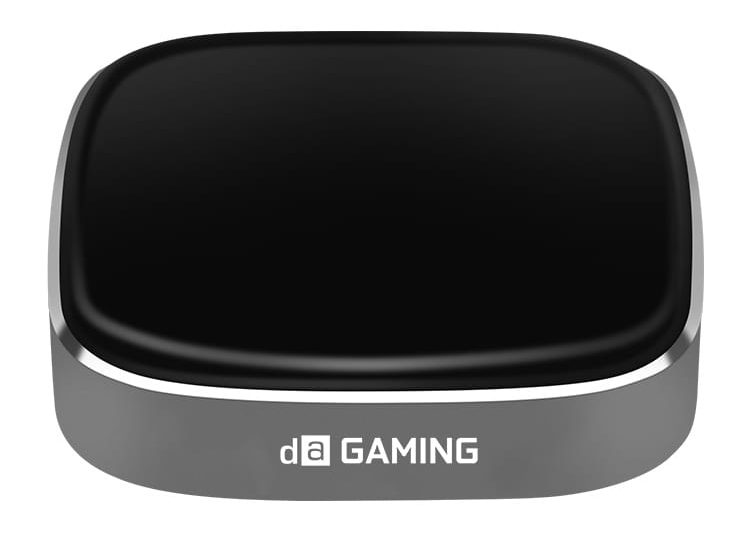

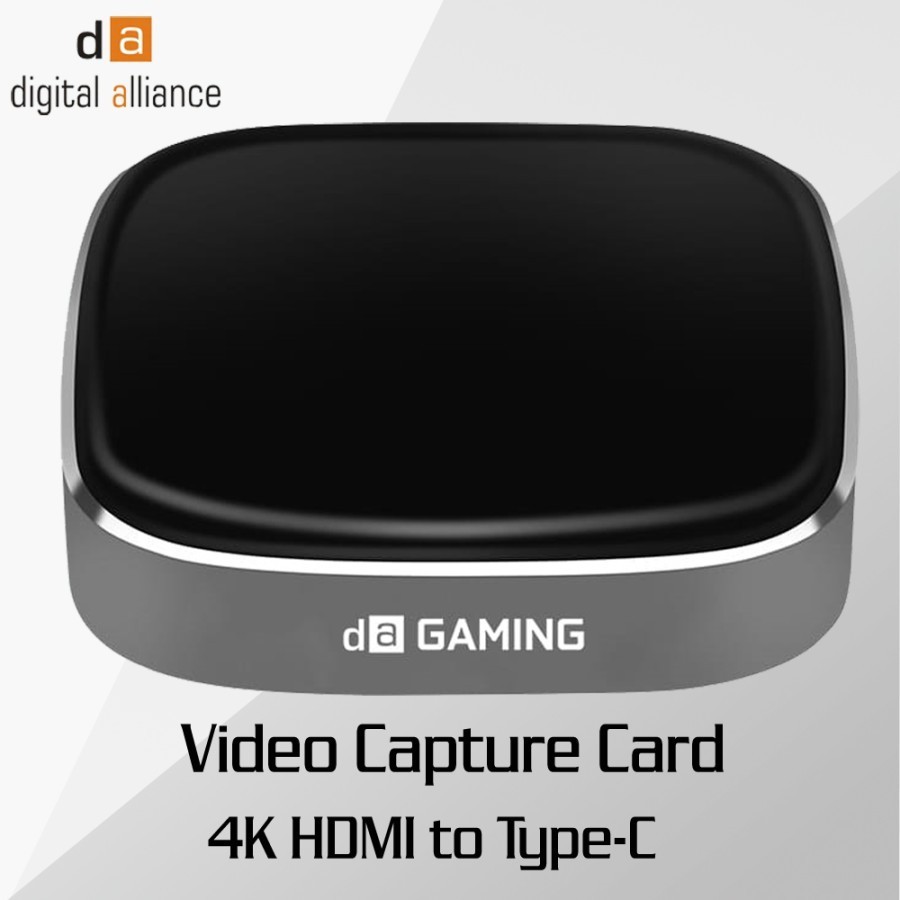

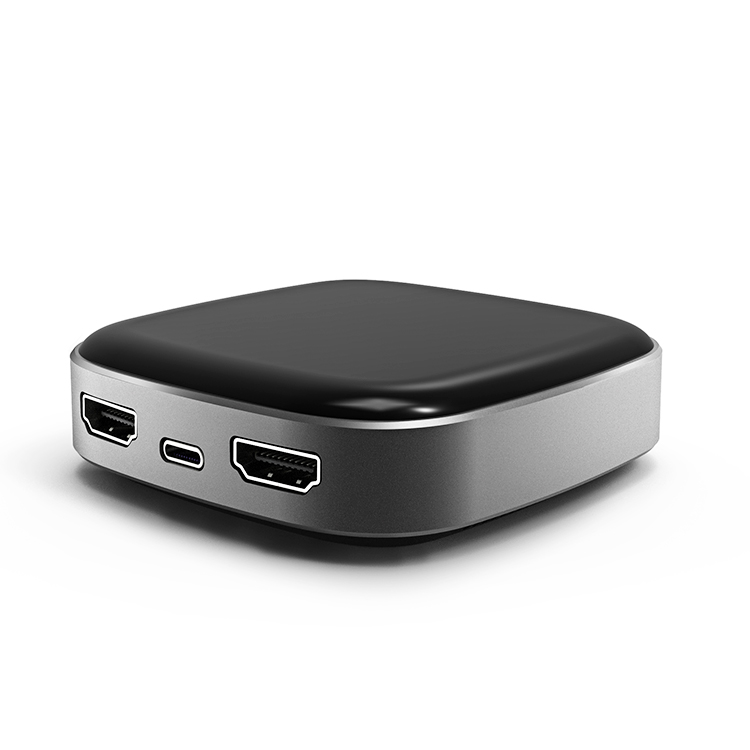

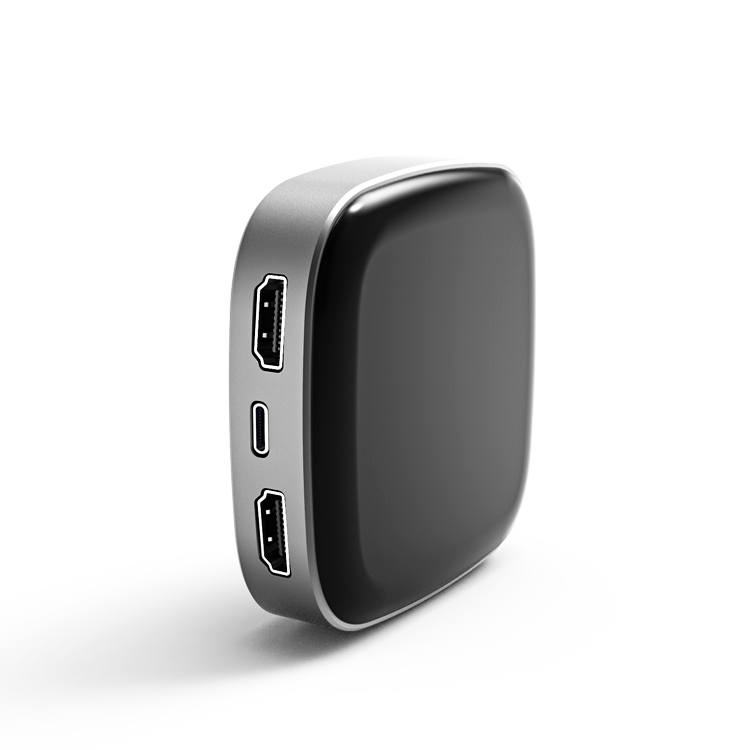

DIGITAL ALLIANCE CAPTURE CARD BOX(HDMI CAPTURE CARD)

Description

Digital alliance Video Capture Card 4K HDMI to Type-C Capture
Type 4K/60Hz HDMI to Type C Capture
Input Interface HDMI
Output Interface Type C output Up to 300 – 350 MB/s bandwith
Resolution Up to 1080p/60Hz, 4K/60Hz HDMI input & HDMI Loop Out
HDMI Input 4K/60,50 | 4K/30,25,24 | 1080p/60,50,30 | 720p 50/60
HDMI Audio Input 1 LPCM Audio Signal
Output Format 1920 x 1080 / 1280 x 720 Frame Rate : 50/60 fps
Audio & Video Capture Complies with UVC & UAC
Output Color Space YUV, RGB
Dimension 80 (L) x 80 (W) x 16 (H) mm
Software Compatibility • Adobe Flash Media Live Encoder (Windows, OS X)
• Real Producer (Windows)
• VLC (Windows, OS X, Linux)
• Quicktime Broadcaster (OS X)
• Quicktime Player (OS X)
• OBS
• PotPlayer
