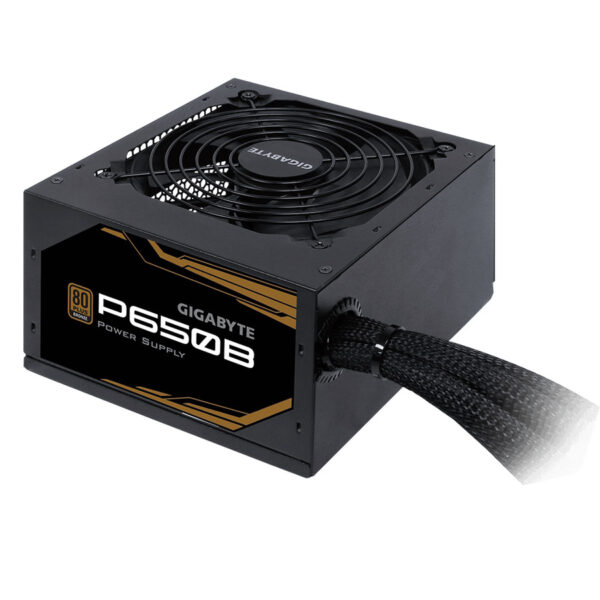

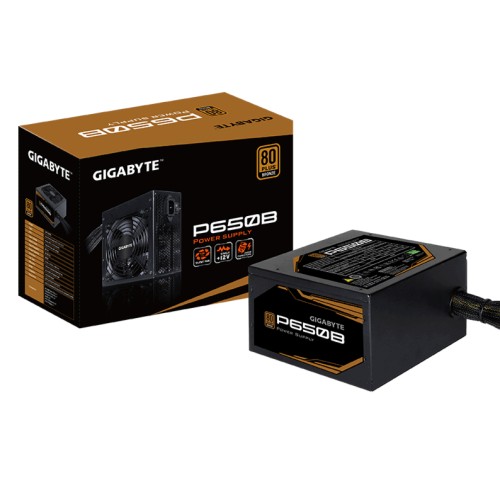

GIGABYTE P650B 650 WATT 80+

Description

Model P650B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 9A-4A
Input Frequency 50-60 Hz
Output Capacity 650W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing Fan
Efficiency Up to 85% at typical load
MTBF >100,000 hours Protection
OPP/UVP/OVP/SCP/OCP
Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Connectors
1x ATX/MB 20+4 Pin
1x CPU/EPS 4+4 Pin
6x PCI-e 6+2 Pin x 4, SATA
3x 4 Pin Peripheral
1xx 4 Pin Floppy
